  • Six video/audio measurement and monitoring modules to choose from two with EYE one with TSG
  • For use in the MicroFlex Mach2
  • Select the feature set and functionality you need when you want it.
  • 3G, HD, SD SDI and composite, Embedded and AES/EBU audio
  • TSG variant with video/audio measurement and monitoring incl.
  • EYE pattern variants with video/audio measurement and monitoring incl.
  • All with clear professional looking waveform, vectorscopes and audio measurement and monitoring included



Enquire About this Product >>

General Information

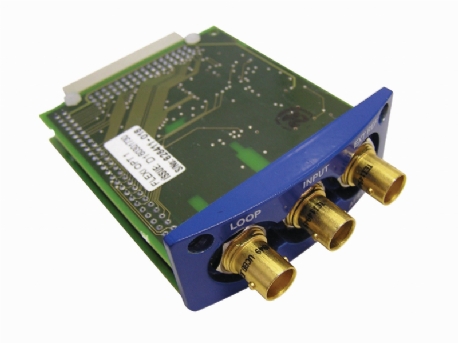

The Hamlet Flexiscope modules can be used in the multiple award winning hand held MicroFlex Mach2. They enable the main chassis to provide full measurement and monitoring of selected video standards plus the adition of test signal geneartion or EYE pattern displays if included.

This product contains proprietary patented designs both US 6,493,024B1 GB2329294, it may be that other products may infringe these patents.

Modules available

HD/SD            HD and SD SDI input module 01
SD/CST          HD SDI and CST input module 02
WFM/GEN      HD and SD SDI input with video/audio test signal generation module 03
HD/SD+EYE   HD and SD SDI input with EYE module 04
3G/HD/SD      3G, HD and SD SDI input module 05
3G/HD/SD+EYE 3G, HD and SD SDI input with EYEmodule  06
DVI                 DVI/VGAoutput card
HD/DVI           HD, SD and DVI output card

Products that use the above modules include:-

MicroFlex

AbsoluteCare

Four years of AbsoluteCare is included with each purchase of a MicroFlex, MonitorScope and DigiScope from an authorised Hamlet reseller and the registration on the Hamlet website has been completed within one month of purchase.

Features and functions

Each FlexiScope input module enables full and clear waveforms and vectoscopes with audio measurement and monitoring when installed into MicroFlex Mach2.

  • HD/SD            HD and SD SDI input module 01
  • SD/CST          HD SDI and CST input module 02
  • WFM/GEN      HD and SD SDI input with video/audio test signal generation module 03
  • HD/SD+EYE   HD and SD SDI input with EYE module 04
  • 3G/HD/SD      3G, HD and SD SDI input module 05
  • 3G/HD/SD+EYE 3G, HD and SD SDI input with EYEmodule  06

The input module with TSG enables the instrument to output full specification 10 bit test signals including:

100% Colour bars, 75%, Colour bars, SMPTE Colour bars/Convergence, Bowtie, Split Coour Bars, Full screen Red and White, Ramp, Limit-Ramp, Sweep, Multiburst, Pulse and Bard, Pluge, modulated Steps and SDI pathalogical check patterns. Optional patterns available. Standards includeinterlaced, 60Hz, 50Hz, 48Hz and progessive 1080 30Hz, 25Hz, 24Hz, and both 720 at 60Hz and 50HZ.

The input modules with + EYE enable the display of EYE pattern in 3EYE, 10EYE with filtering selection

Specifications

Please select the appropriate Module Otpion Specification Sheet from documentation

Ordering

FlexiScope Modules

  • HD/SD            HD and SD SDI input with video/audio measurement and monitoring (module 01)
  • SD/CST          HD SDI and CST input with video/audio measurement and monitoring(module 02)
  • HD/SD+TSG      HD and SD SDI input with video/audio measurement and monitoring and test signal generation (module 03)
  • HD/SD+EYE   HD and SD SDI input with video/audio measurement and monitoring and EYE (module 04)
  • 3G/HD/SD      3G, HD and SD SDI input with video/audio measurement and monitoring (input module 05)
  • 3G/HD/SD+EYE 3G, HD and SD SDI input with video/audio measurement and monitoring and EYE (module 06)
  • DVI                 DVI/VGAoutput card (MSand DS 9000)
  • HD/DVI           HD, SD and DVI output card (MSand DS 9000)

NOTE: Depending on the main chassis the option is destined for prefix the above with:

MicroFlex

  • MF

FAQs

Q. Are modules interchangeable

A. Yes they are

Q. Can a user change modules

A. Yes they can

Q. Will I be able to get 4 years of warranty if I don't resgiter

A. No Products must be registered with one month of reciept via our wen site or direct with the office
